The Jesmond Plan (NB0088-A)

The Jesmond Plan (NB0088-A)

Regular price $547.97 USD
Regular price Sale price $547.97 USD
Sale Sold out
Tax included.

Please note that this plan is still being worked on; upon placing your order, you will receive the plan within 5 days.

Specifications

  • Dimensions: 46' x 42'
  • Total Area: 1,932 sq. ft.
  • 3 Bedrooms
  • 2 Bathrooms

About

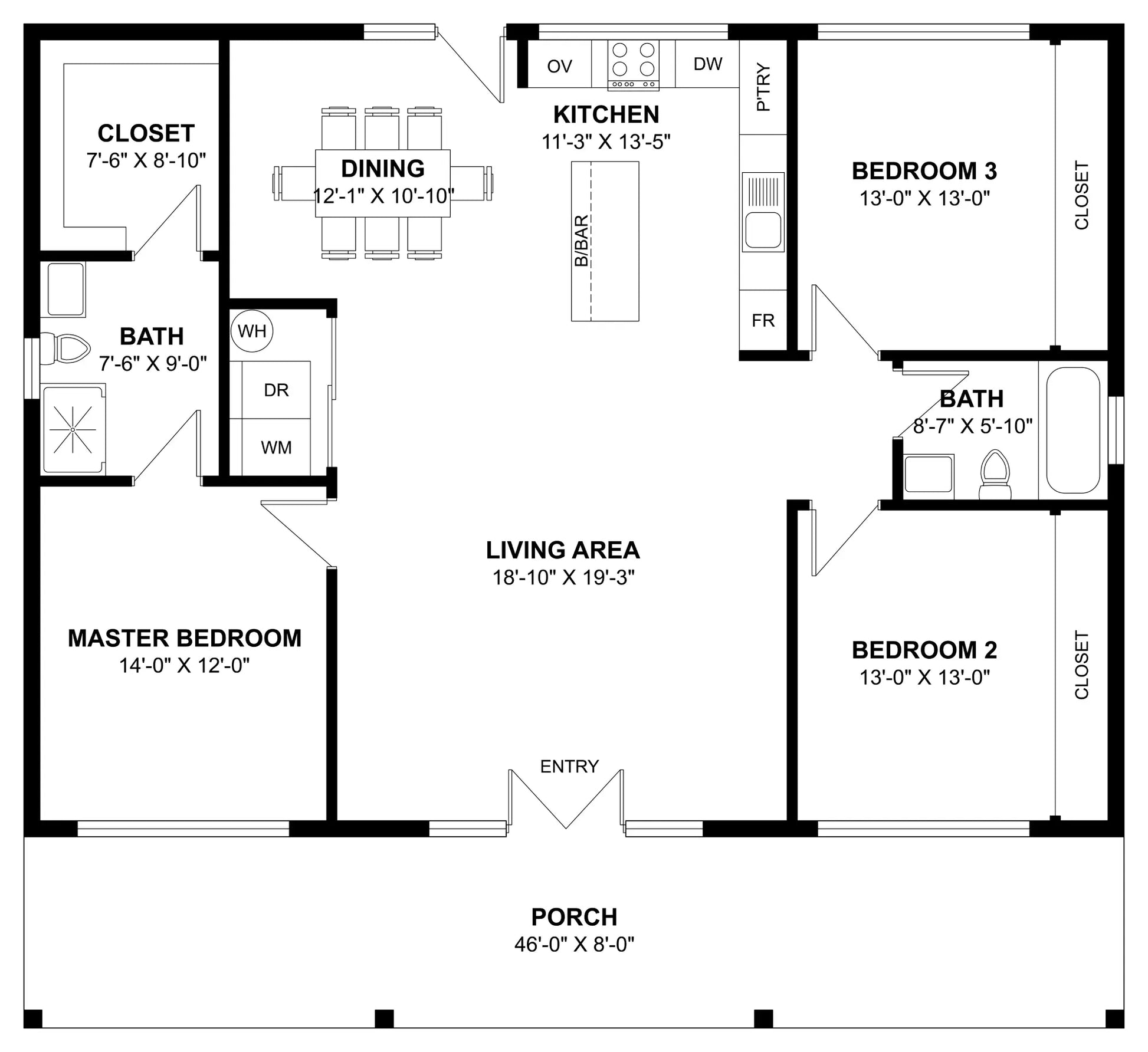

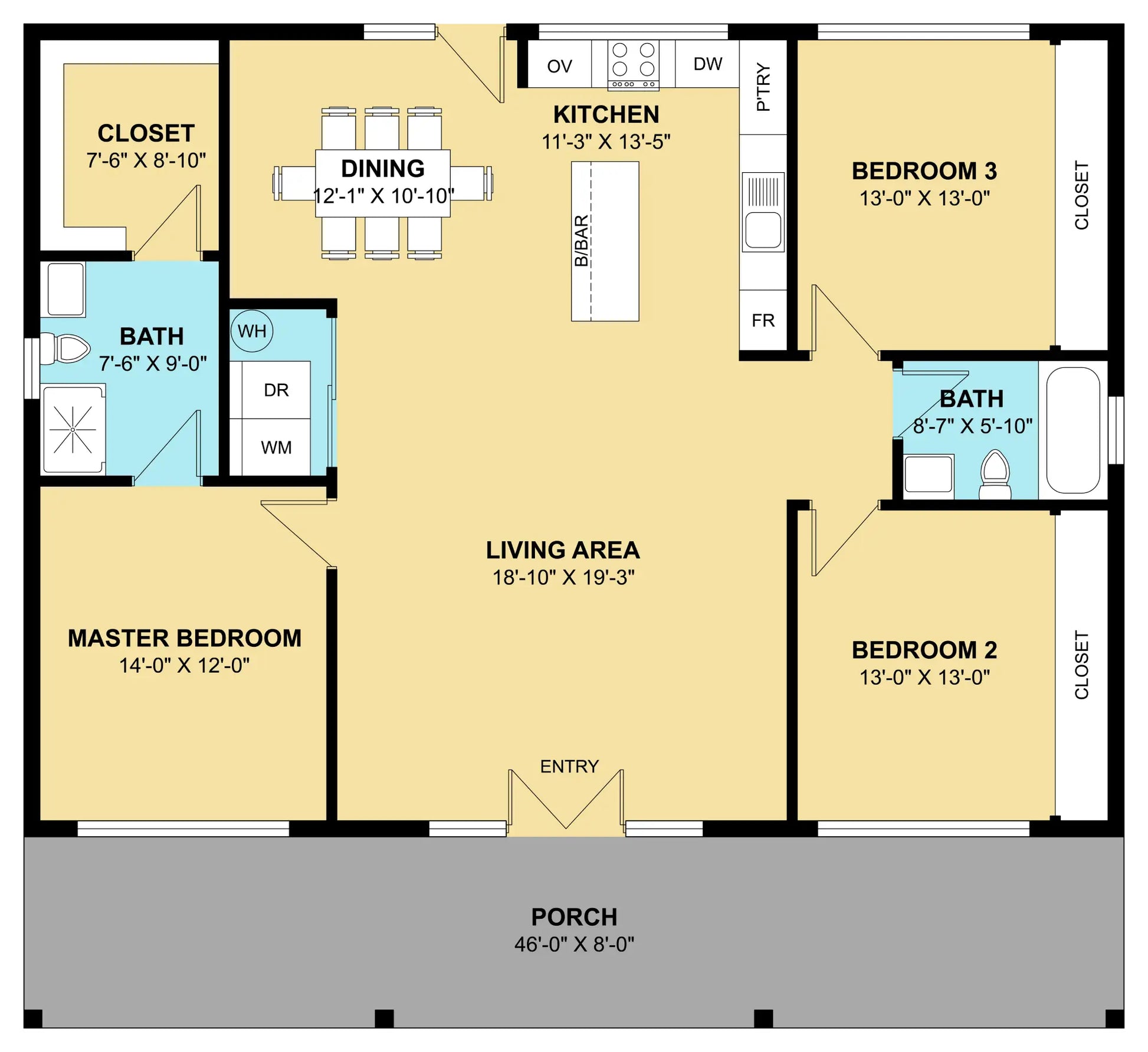

The Jesmond Plan offers 1,932 sq. ft. of thoughtfully designed living space in a 46' x 42' layout.

This charming home features 3 comfortable bedrooms and 2 bathrooms, making it perfect for families or couples seeking extra space.

The open-concept living area creates a welcoming atmosphere that’s ideal for both daily living and entertaining.

A functional laundry room adds convenience, while each bedroom comes with its own closet for ample storage.

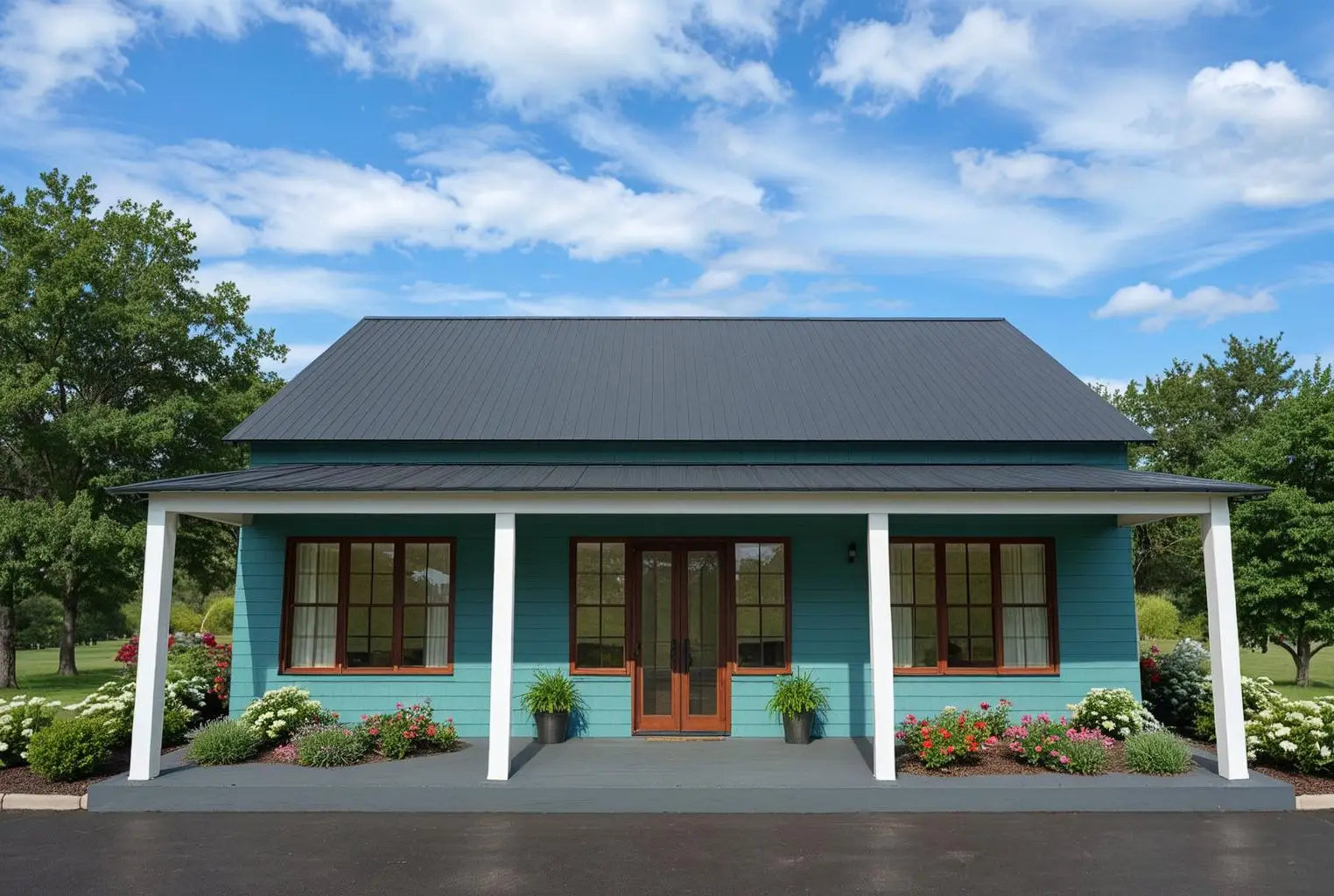

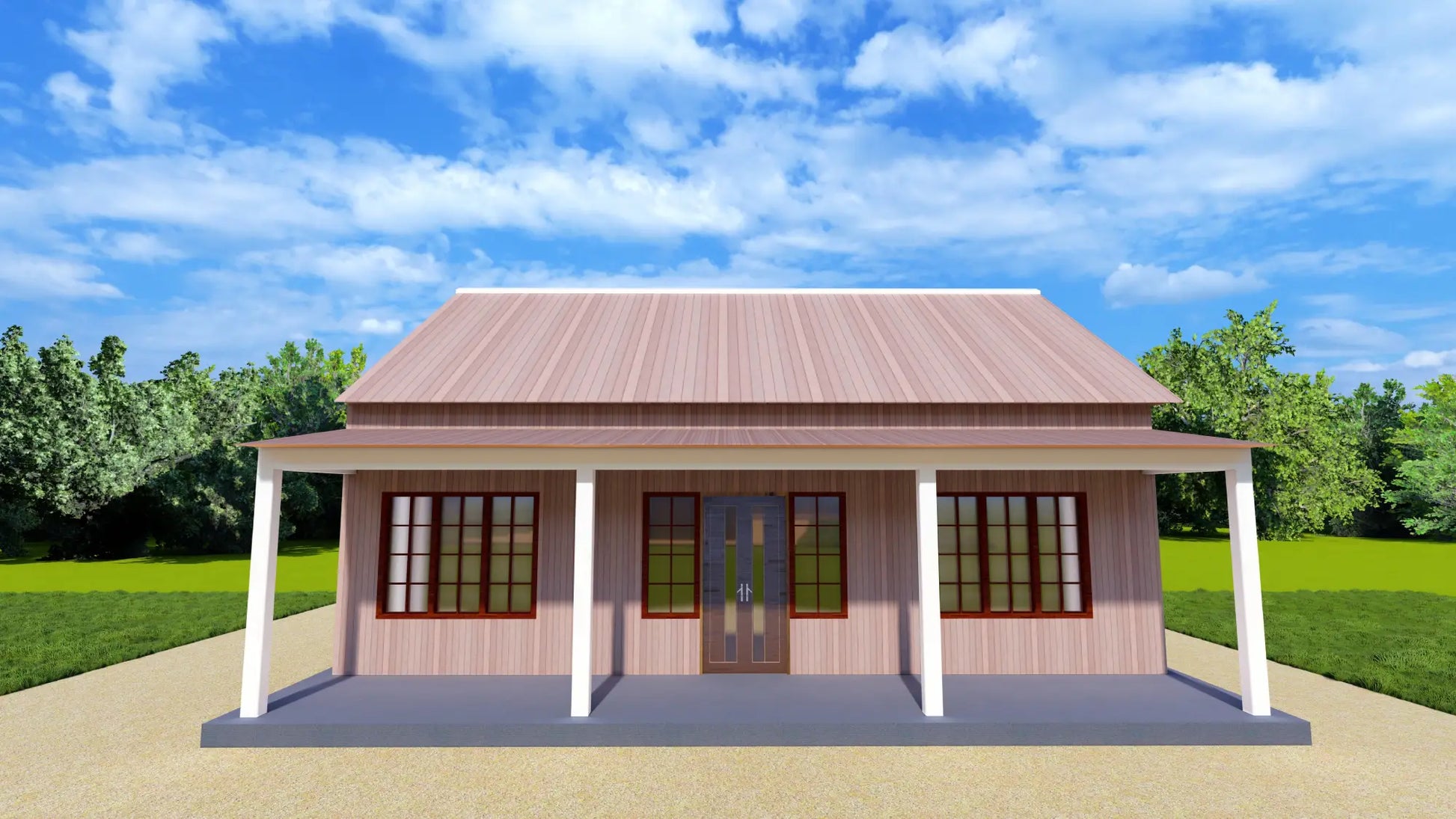

The inviting front porch enhances the home’s curb appeal and provides a relaxing spot to unwind.

The Jesmond Plan blends practicality and comfort in a beautifully efficient design.

What's Included?

You will receive a PDF download with stock plan documents that include the following:

  • Detailed Floor Plan
  • Elevations
  • Electrical/Lighting Plan
  • Foundation Layout Plan
  • Pole Layout Plan
  • Roof Plan
  • Window, Door & Light Schedule

Click here to download a sample plan.

Plan Modifications

Looking to make changes to our plans? Get in contact with us and our team will be in touch within 48 hours with a free personalized quotation.

*All square footages are estimates

What's not included?

  1. Architectural or Engineering Stamp: To be addressed locally if deemed necessary.
  2. Site Plan: To be addressed locally when it is deemed necessary.
  3. Energy calculations: To be addressed locally when they are deemed necessary.

Delivery

This product is entirely digital. You will receive the plan via email in PDF format.

Return Policy

All purchases of barndominium house plans are non-refundable and
non-exchangeable due to the digital format of the product. Please ensure
that the chosen plan suits your requirements before making the
purchase.
